LM358H 1MHZ High Voltage Bipolar Opamp

1、Features

Single-Supply Operation from +3V ~ +36V
Dual-Supply Operation from ±1.5V ~ ±18V
Gain-Bandwidth Product: 1MHz (Typ)
Low Input Bias Current: 20nA (Typ)
Low Offset Voltage: 5mV (Max)
Quiescent Current: 250μA per Amplifier (Typ)
Input Common Mode Voltage Range Includes Ground
Large Outpu Voltage Swing:0V to Vcc-1.5V
Operating Temperature: -25°C ~ +85°C
Small Package:LM358H Available in SOP-8 and MSOP-8 Packages

3、Applications

Walkie-Talkie
Battery Management Solution
Transducer Amplifiers
Summing Amplifiers
Multivibrators
Oscillators
Switcching Telephone
Portable Systems

2、General Description

The LM358H have a high gain-bandwidth product of 1MHz, a slew rate of 0.2V/μs, and a quiescent currentof 250μA/amplifier at 5V. The LM358H is designed to provide optimal performance in low voltage and low noise systems. The maximum input offset voltage is 5mV for LM358H. The operating range is from 3V to 36V.The LM358H Dual is available in Green SOP-8 and MSOP-8 packages.

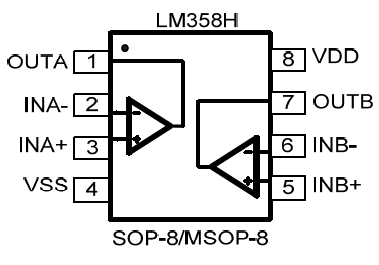

4、Pin Configuration

乙酰乙酸技術參數

供應情況

緩沖區數

主線任務電壓降范圍

(V)

增加收益服務器帶寬積

外部電流值/清算通道

穩定電壓降

（mV）

和平直流電壓溫漂

（μV/°C）

輸出的偏置功率

（nA）

封裝形式

LM358H

量產

3.0-36

1MHz

250uA

SOP8/MSOP8
